Product Details:
|
| Deaign: | EN837-1 | Size: | 40mm |
|---|---|---|---|
| Mount: | Lower/back | Pressure Range: | 250 Bar Or Customized |
| Case Material: | Painted Steel | Lens Material: | Acrylic, Glass |
| Bourton Tube: | Phosphor Bronze | Movement: | Brass |
| Dial: | Aluminum | Accuracy: | 1.6 |
| High Light: | Utility Pressure Gauge 250 Bar,Utility Stainless Steel Pressure Gauge,40mm Hydronic Manometer Gauge |
||

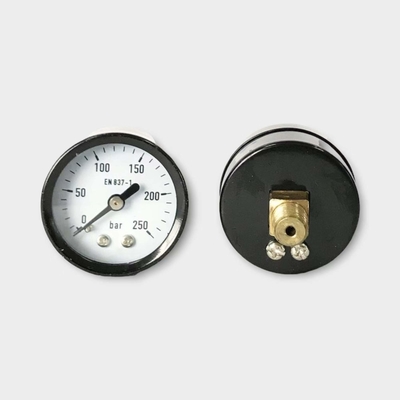

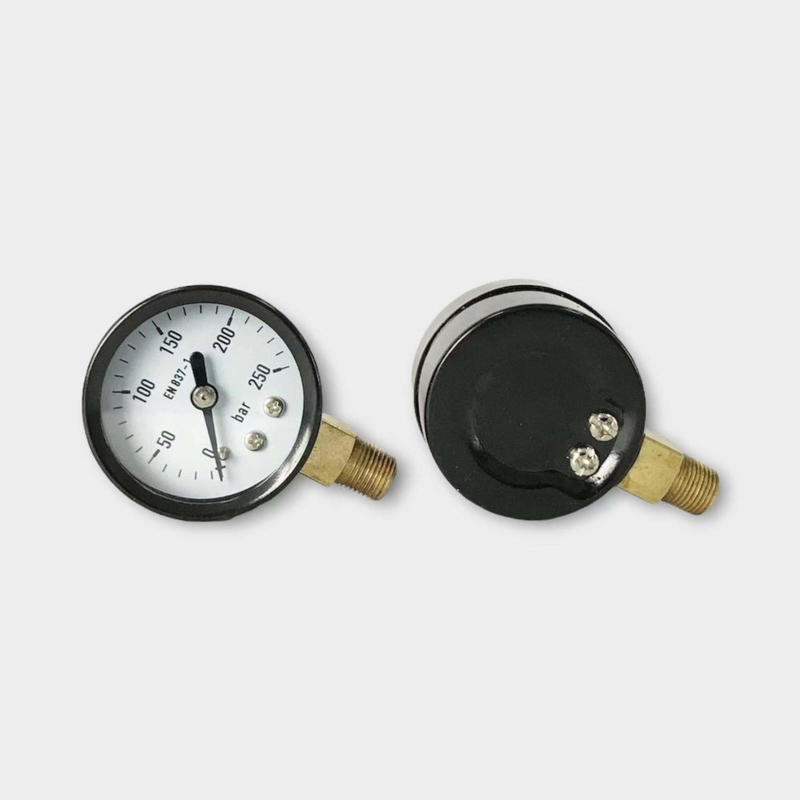

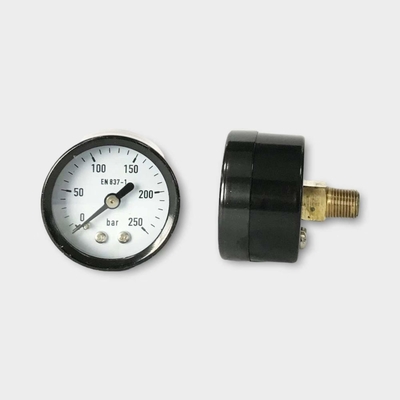

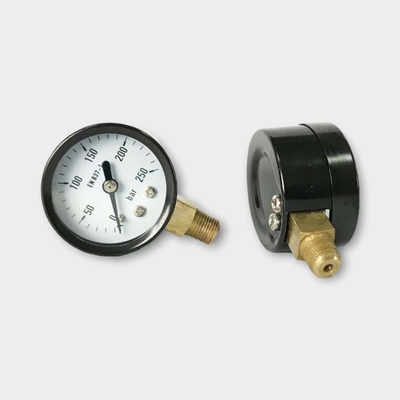

40mm Pressure Gauge 250 bar Black Steel Case Hydronic Manometer
Description
The most common design of hydraulic pressure gaugeis the Bourdon-tube gauge. The basic principle of the pressure gauge has not changed since the invention of the Bourdon-tube, more than a century ago, but different gauges are available to meet the different criteria of individual Hydraulic Systems.
Applications
For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts.
Pneumatics
Heating and air-conditioning technology
Medical engineering
Special features
Reliable and cost-effective
Design per EN 837-1
Nominal size 40, 50, 63, 80, 100 and 160
Scale ranges up to 0 ... 400 bar
|
Design |
EN 837-1 |
|
Nominal size |
40mm |
|
Accuracy |
2.5 |
| Pressure range | 250 bar (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
|
Permissible temperature |
Ambient: -20 ... +60 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Brass |
|
Pressure element |
Brass, C-type or helical type
Bourdon tube |
| Movement | Brass |
| Dial | Aluminium, white, with pointer stop pin Black/red lettering |
| Pointer | Aluminium |
| Case | Painted Steel |
| Window | Acrylic, glass |
| Options |
Other process connection |
Dimensions
lower mount (radial)
| Dial Size | Dimensions in mm | Weight in kg | |||||
| a | b | D | G | h | SW | ||
| 40 | 9.5 | 26 | 39 | G1/4 | 36 | 14 | 0.08 |
| 50 | 10 | 27.5 | 49 | G1/4 | 45 | 14 | 0.10 |
| 63 | 9.5 | 27.5 | 62 | G1/4 | 53.5 | 14 | 0.13 |
| 80 | 11.5 | 30 | 79 | G1/2 | 72 | 22 | 0.18 |
| 100 | 11.5 | 30.5 | 99 | G1/2 | 83.5 | 22 | 0.21 |
| 160 | 15.5 | 42 | 160 | G1/2 | 115.5 | 22 | 0.85 |
back mount (axial)
| Dial Size | Dimensions in mm | Weight in kg | ||||
| b1 | b2 | D | G | SW | ||
| 40 | 26 | 42 | 39 | G1/8 | 14 | 0.06 |
| 50 | 29.5 | 47.5 | 49 | G1/4 | 14 | 0.07 |
| 63 | 29 | 47 | 62 | G1/4 | 14 | 0.08 |
| 80 | 32 | 49 | 79 | G1/4 | 14 | 0.11 |
| 100 | 31 | 49 | 99 | G1/4 | 14 | 0.26 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
