Product Details:
|
| Size: | 80mm | Mount: | Back, Clamp |
|---|---|---|---|
| Pressure Range: | 1000 KPa Or Customized | Case Material: | 304 SUS |
| Lens Material: | PC Glass | Bourton Tube: | Brass |
| Movement: | Brass | Accuracy: | 1.6 |
| Liquid: | Silicone Oil, Glycerol | Thread: | 1/4PT, NPT, G, M14*1.5... |
| High Light: | 80mm Liquid Filled Pressure Gauge,Brass Liquid Filled Pressure Gauge,Liquid Oil Pressure Gauge EN 837-1 |
||

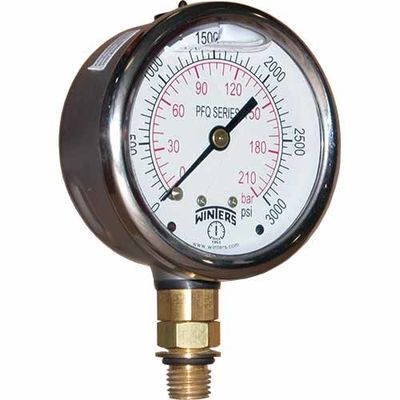

80mm 1000 KPa Manometer with Clamp Panel Mounting Glycerin Liquid Filled Pressure Gauge
Description
Wesen type M03.02.080.C gauges are specifically designed for the HVAC market as a contractor’s gauge. This gauge features a stainless steel case, brass wetted parts, and an adjustable pointer. Contractor’s gauges are designed for static applications and may not be well-suited to high vibration and pulsation applications.
Applications
For measuring locations with high dynamic pressure loads and vibrations
For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts
Hydraulics
Compressors, shipbuilding
Special features
Vibration and shock-resistant
Especially robust design
Completely from stainless steel
Scale ranges up to 0 ... 1000 bar
|
Design |
EN 837-1 |
|
Nominal size |
80mm |
|
Accuracy |
1.6 |
| Pressure range | 1000 kPa (customized) |
|
Pressure limitation |
40mm, 50mm, 63mm: |
| Permissible temperature |
Ambient: -20 ... +60 °C |
|
Ingress protection |
IP65 |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Brass |
|
Pressure element |
Brass, C type bourdon tube |
| Movement | Brass |
| Dial | Aluminium, white, with pointer stop pin Black and red lettering |
| Pointer | Aluminium |
| Case | 304 SS |
| Ring | Rolling type, with flange |
| Window | Plastic, glass, safety glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection thread Surface mounting flange Mounting bracket |
Dimensions
| Size | Dimensions in mm | Weight in kg | |||||||||
| a | b | b2 | D1 | D2 | e | f | G | h | SW | ||
| 50 | 12 | 30 | 55 | 55 | 50 | 5.5 | - | 1/4" | 48 | 14 | 0.15 |
| 63 | 13 | 32 | 56 | 68 | 62 | 6.5 | - | 1/4" | 54 | 14 | 0.21 |
| 100 | 15.5 | 48 | 81.5 | 107 | 100 | 8 | 30 | 1/2" | 87 | 22 | 0.80 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
