Product Details:
|
| Deaign: | EN837-1 | Size: | 160mm |
|---|---|---|---|
| Mount: | Bottom, Radial | Pressure Range: | 1 MPa Or Customized |
| Case Material: | Stainless Steel | Lens Material: | Instruments Glass, Safety Glass |
| Bourton Tube: | Stainless Steel 316 | Movement: | Stainless Steel 304 |
| Dial: | Aluminum | Accuracy: | 0.4 |
| High Light: | 10 bar pressure gauge ss316,160mm pressure gauge ss316,1 MPa pressure gauge bottom connection |
||

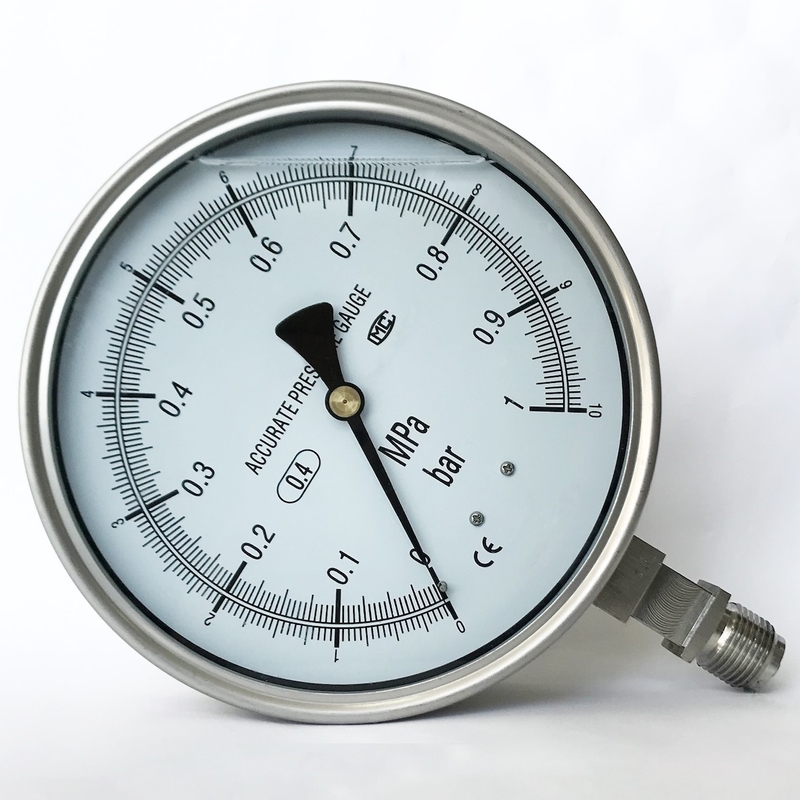

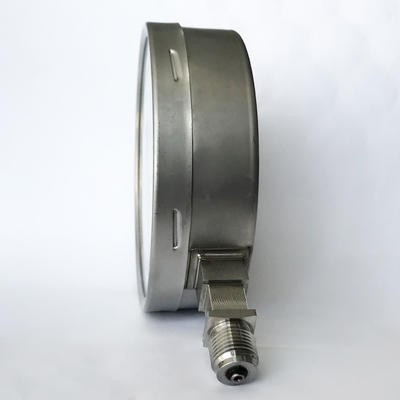

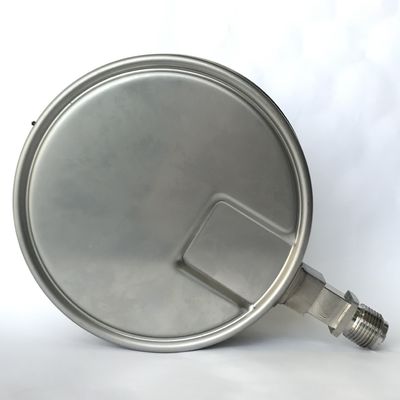

160mm Stainless Steel Precision Pressure Gauge 10 bar 1 MPa Test Manometer
Description
WESEN type M13 inspector’s test gauges are convenient for field calibrations. They have an accuracy of ±0.25% which meets ASME B40.100 Grade 3A. The mirrored band on the dial and the knife-edge pointer make it easy to take accurate readings from the gauge. Type M13 test pressure gauges are suppliedstandard with a padded, nylon carrying pouch.
Applications
For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
Precision measurement in laboratories
High-accuracy pressure measurement, testing of indus- trial type pressure gauges
Increased safety requirements for personal protection
With liquid-filled case for applications with high dynamic pressure loads or vibrations
Special features
Safety pressure gauge with solid baffle wall designed in compliance with the requirements and test conditions of EN 837-1
Completely from stainless steel
Knife edge pointer for optimal accuracy of reading
Wear-resistant precision movement from stainless steel
Scale ranges from 0 … 0.6 to 0 … 1,600 bar [0 ... 10 psi to 0 ... 20,000 psi]
|
Design |
EN 837-1 |
|
Nominal size |
160mm |
|
Accuracy |
0.6, 0.4, 0.25 |
| Pressure range | 1 MPa(customized) |
|
Working pressure |
Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value |
| Permissible temperature |
Ambient: -40 ... +60 °C - dry; -20 ... +60 °C - glycerine filled -40 ... +60 °C - silicone filled Mediium: +100 °C maximum with filled instruments +200 °C maximum with unfilled instruments |
|
Ingress protection |
IP66 |
|
Temperature effect |
When the temperature at the measuring system deviates from the reference temperature +20 °C [+68 °F]: ≤ ±0.4 %/10 °C [≤ ±0.4 %/18 °F] of full scale value |
|
Process connection |
Stainless steel, SUS 304, SUS 316 |
|
Pressure element |
Stainless steel 316L |
| Movement | Stainless steel |
| Dial | Aluminium |
| Pointer | Aluminium |
| Case | Stainless steel |
| Ring | Bayonet ring, stainless steel |
| Window |
Laminated safety glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection thread Surface mounting flange Mounting bracket |
Dimensions
| Scale range | Dimensions in mm | |||||||
| a | b | D1 | D2 | e | G | h | SW | |
| < 100 bar (1500 psi) | 27 | 65 | 161 | 159 | 17.5 | 1/2" | 118 | 22 |
| ≥ 100 bar (1500 psi) | 41.5 | 79 | 161 | 159 | 17.5 | 1/2" | 118 | 22 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
FAQ
Q1. Can I have a sample order for pressure gauge?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 15 days for Sample preparing, 25 working days for mass production.
Q3. Do you have any MOQ limit for pressure gauge order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for pressure gauge?
A: Firstly let us know your requirements or application. Provide Model, Dial size, Pressure range, Process connection, Options.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on pressure gauge product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 12 months to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.04%.
Secondly, during the guarantee period, we will send new manometers with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
