Bottom Mount Precision Pressure Gauge SS304 160mm 1000 Bar Pressure Gauge

Certification
China Wesen Technologies (Shanghai) Co., Ltd. certification
China Wesen Technologies (Shanghai) Co., Ltd. certification
I'm Online Chat Now

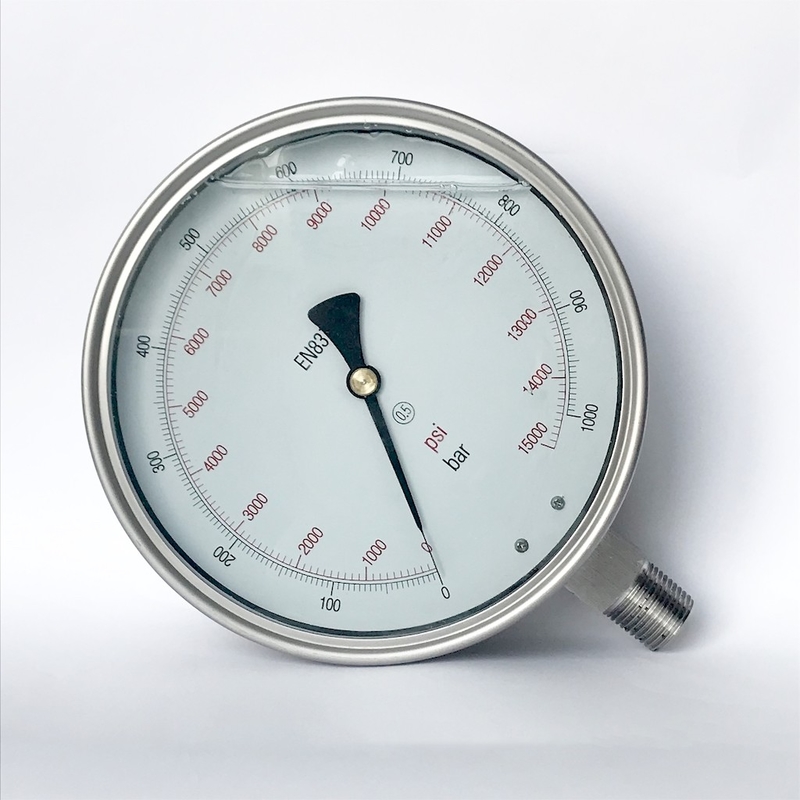

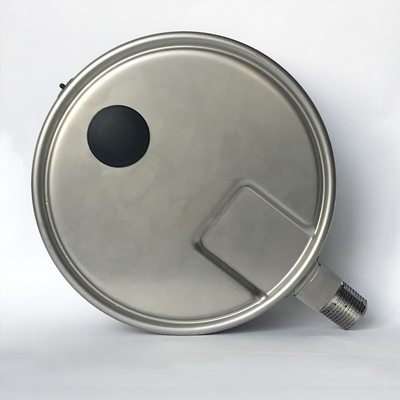

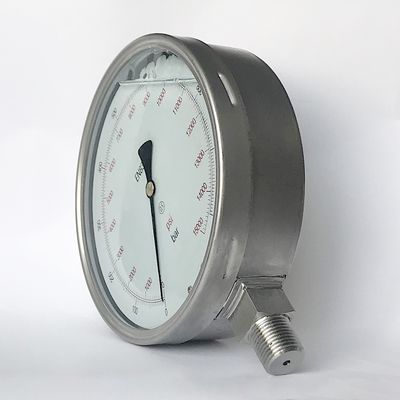

Bottom Mount Precision Pressure Gauge SS304 160mm 1000 Bar Pressure Gauge

Bottom Mount Precision Pressure Gauge SS304 160mm 1000 Bar Pressure Gauge
Bottom Mount Precision Pressure Gauge SS304 160mm 1000 Bar Pressure Gauge Bottom Mount Precision Pressure Gauge SS304 160mm 1000 Bar Pressure Gauge Bottom Mount Precision Pressure Gauge SS304 160mm 1000 Bar Pressure Gauge

Large Image :  Bottom Mount Precision Pressure Gauge SS304 160mm 1000 Bar Pressure Gauge

Product Details:
Place of Origin: China
Brand Name: WESEN or Customized
Certification: CE, ISO
Model Number: M13.01.160.N
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~4 Weeks
Payment Terms: T/T
Supply Ability: 10000 Pieces per Month

Bottom Mount Precision Pressure Gauge SS304 160mm 1000 Bar Pressure Gauge

Description
Size: 160mm Mount: Bottom, Radial
Pressure Range: 1000 Bar Or Customized Case Material: SS 304
Lens Material: Instruments Glass Bourton Tube: SS 316
Movement: SS 304 Dial: Aluminum, Black And Red Lettering
Accuracy: 0.5 Deaign: EN837-1
High Light:

Bottom Mount Precision Pressure Gauge

,

SS304 Precision Pressure Gauge

,

160mm 1000 bar pressure gauge

160mm Stainless Steel Test Manometer 1000 bar Precision Pressure Gauge



Description

WESEN type M13 direct drive test gauge features a direct drive, movementless pressure system. With a shock absorbing Bourdon tube design, these gauges are an effective means for guarding against severe shock and vibration applications that require test gauge accuracy. The M13 is manufactured in a standard black 41⁄2” process gauge style case and comes standard completely equipped with an external zero adjustment and a high 0.25% full scale accuracy.



Applications

For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments

Precision measurement in laboratories

High-accuracy pressure measurement, testing of industrial type pressure gauges

Increased safety requirements for personal protection

With liquid-filled case for applications with high dynamic pressure loads or vibrations

​​

Special features

Safety pressure gauge with solid baffle wall designed in compliance with the requirements and test conditions of EN 837-1

Completely from stainless steel

Knife edge pointer for optimal accuracy of reading

Wear-resistant precision movement from stainless steel

Scale ranges from 0 … 0.6 to 0 … 1,600 bar [0 ... 10 psi to 0 ... 20,000 psi]



Specifications

Design

EN 837-1

Nominal size

160mm

Accuracy

0.6, 0.4, 0.25
Pressure range 1000 bar (customized)

Working pressure

Steady: full scale value

Fluctuating: 0.9 x full scale value

Short time: 1.3 x full scale value

Permissible temperature

Ambient:

-40 ... +60 °C - dry;

-20 ... +60 °C - glycerine filled

-40 ... +60 °C - silicone filled

Mediium:

+100 °C maximum with filled instruments

+200 °C maximum with unfilled instruments

Ingress protection

IP66

Temperature effect

When the temperature at the measuring system deviates from the reference temperature +20 °C [+68 °F]: ≤ ±0.4 %/10 °C [≤ ±0.4 %/18 °F] of full scale value

Process connection

Stainless steel, SUS 304, SUS 316

Pressure element

Stainless steel 316L
Movement Stainless steel
Dial Aluminium
Pointer Aluminium
Case Stainless steel
Ring Bayonet ring, stainless steel
Window

Laminated safety glass

Unit

bar, psi, kg/cm2, kPa, MPa

Thread G, BSP, PT, BSPT, NPT
Options Other process connection thread
Surface mounting flange
Mounting bracket



Dimensions

Bottom Mount Precision Pressure Gauge SS304 160mm 1000 Bar Pressure Gauge 0



Scale range Dimensions in mm
a b D1 D2 e G h SW
< 100 bar (1500 psi) 27 65 161 159 17.5 1/2" 118 22
≥ 100 bar (1500 psi) 41.5 79 161 159 17.5 1/2" 118 22



Ordering information

Model / Dial size / Pressure Range / Process connection / Options



Bottom Mount Precision Pressure Gauge SS304 160mm 1000 Bar Pressure Gauge 1
