Product Details:
|
| Size: | 150mm | Mount: | Radial Direction |
|---|---|---|---|
| Pressure Range: | 300 Psi Or Customized | Color: | Metal Color |
| Case Material: | Stainless Steel 304 Or 316 | Lens: | Glass |
| Movement: | Copper Alloy | Thread: | 3/8" Or 1/2" PT, NPT, G, BSP |
| Accuracy: | 1.0 | Pressure Element: | Bourdon Tube, C-type |
| High Light: | 150mm pneumatic pressure gauge,300 psi pneumatic pressure gauge,Bayonet Ring bottom mount pressure gauge |
||

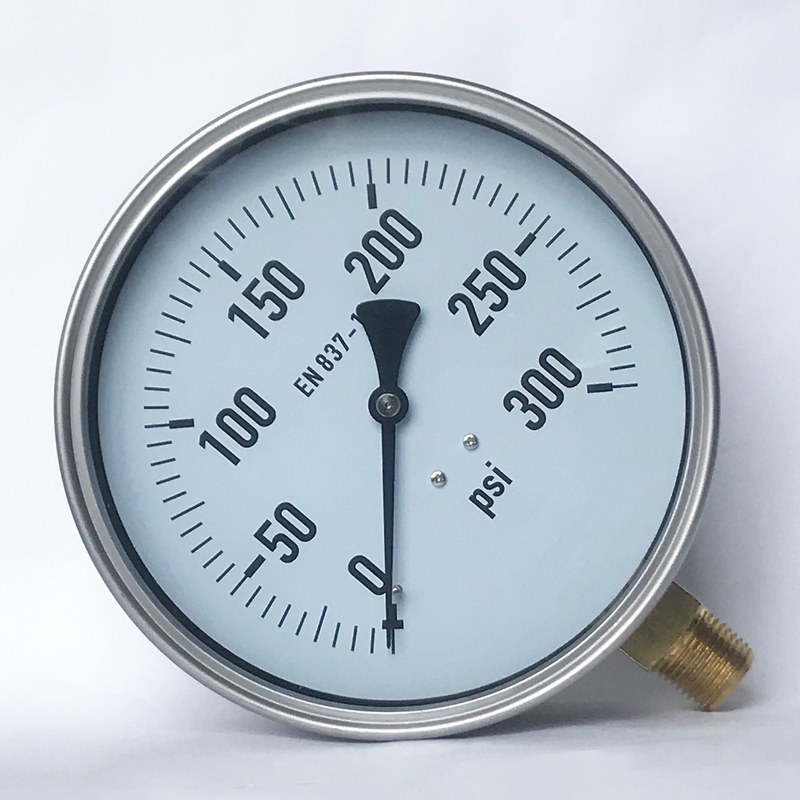

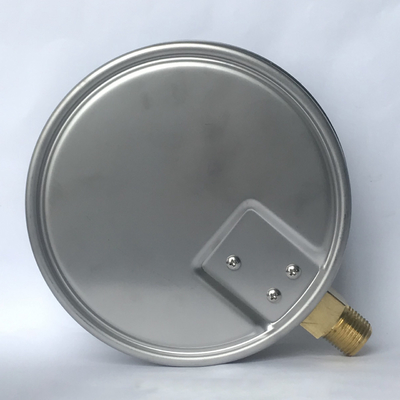

150mm Stainless Steel Pressure Gauge 300 psi Pneumatics Manometer Bottom Mount Bayonet Ring
Description
Hydraulic pressure gauges are available to measure up to 10,000 psi, although maximum hydraulic pressure is typically in the 3,000 to 5,000 psi range. Hydraulic gauges are often installed at or near the pump’s pressure port for indication of system pressure, but can be installed anywhere on the machine where pressure needs to be monitored—especially if sub-circuits operate at a pressure rate different from pump pressure, such as after a reducing valve.
Applications
Suitable for gaseous or liquid media that will not obstruct the pressure system
Machine building and plant construction
Heating and air-conditioning technology
Fire sprinkler systems
Special features
Design per EN 837-1
Nominal size 40, 50, 63, 80, 100 and 160
Scale ranges up to 0 ... 1000 bar
|
Design |
EN 837-1 |
|
Nominal size |
150mm |
|
Accuracy |
KL.1.0 |
| Pressure range | 200 psi (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
|
Permissible temperature |
Ambient: -40 ... +60 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of full scale |
|
Process connection |
Copper alloy |
|
Pressure element |
Brass, C-type |
| Movement | Brass |
| Dial | Aluminium, white, with pointer stop pin Black lettering |
| Pointer | Aluminium |
| Case | Stainless steel |
| Window | Glass, safety glass |
| Options |
Other process connection thread, PT,NPT, G, BSP |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
