Product Details:
|
| Deaign: | EN837-1 | Size: | 40mm |
|---|---|---|---|
| Mount: | Axial Direction | Pressure Range: | 30 ATM, Customized |
| Case Material: | Plastic | Lens Material: | Acrylic |
| Bourton Tube: | SS 316 | Movement: | SS 304 |
| Dial: | Plastic, Blue | Color: | White, Blue |
| High Light: | SS 316 Bourton Tube axial pressure gauge,Plastic Case axial pressure gauge,40mm stainless steel pressure gauge |
||

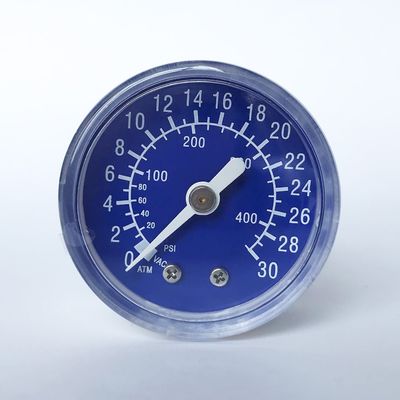

40mm Blue Dial 30 ATM Medical Pressure Gauge Plastic Case Stainless Steel Connector
Description
To be able to indicate the pressure on a linear scale, this nonlinearity must be compensated for by the transmission mechanism. Without compensation the nonlinearity can reach up to 0.5% full scale. Cyclic pressures will cause an additional hysteresis of 0.2 to 0.5% of full scale.
Applications
Medical inflation device, inflation device kits, balloon inflation device, inflation syringe
Inflate and deflate dilation balloon, manual balloon catheter pump
Angioplasty inflation devices, anesthesia equipment, medical regulators, respiratory equipment, dental systems, and many more
Special features
Constructed from hygienic materials
|
Design |
EN 837-1 |
|
Nominal size |
40mm |
|
Accuracy |
2.5 |
| Pressure range | 30 ATM |
|
Pressure limitation |
Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value |
| Permissible temperature |
Ambient: -20 ... +60 °C Mediium: +60 °C maximum |
|
Ingress protection |
IP65 |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
SS |
|
Pressure element |
SS |
| Movement | SS |
| Dial | ABS, colorful, without pointer stop pin, customized |
| Pointer | Aluminum |
| Case | Plastic |
| Window | Plastic |
| Unit |
ATM |
| Thread | G, BSP, PT, BSPT, NPT, other connections |
| Options | Customized logo |
Popular medical pressure gauge
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
