Product Details:
|
| Deaign: | EN837-1 | Size: | 40mm |
|---|---|---|---|
| Mount: | Axial Direction | Pressure Range: | 30 ATM, Customized |
| Case Material: | Plastic | Lens Material: | Acrylic |
| Bourton Tube: | SS 316 | Movement: | SS 304 |
| Dial: | Plastic, Yellow | Color: | Black |
| High Light: | Black acrylic lens pressure gauge,Dial 30 ATM acrylic lens pressure gauge,40mm plastic pressure gauge |
||

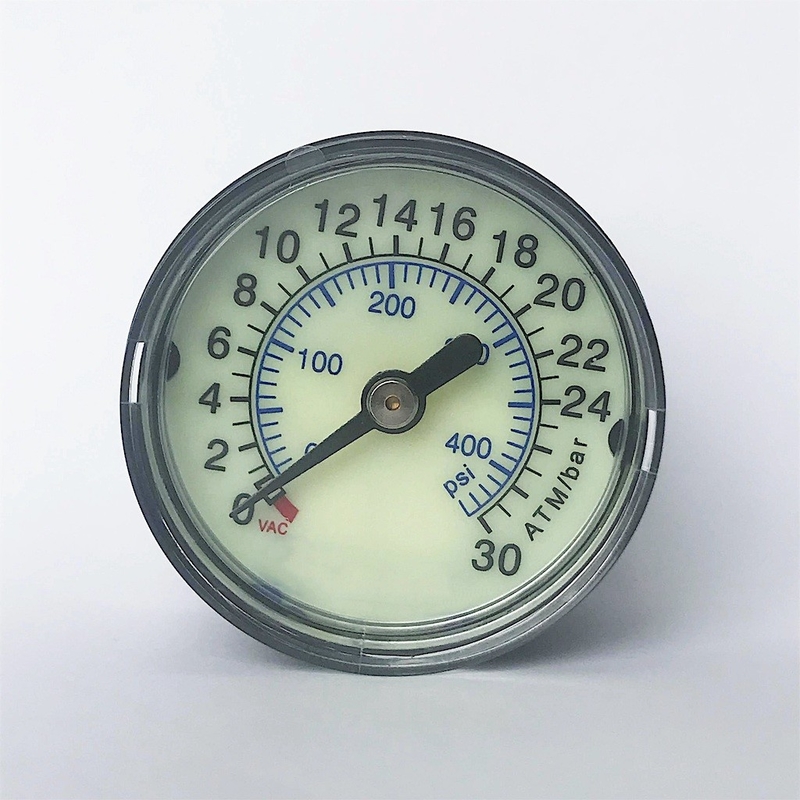

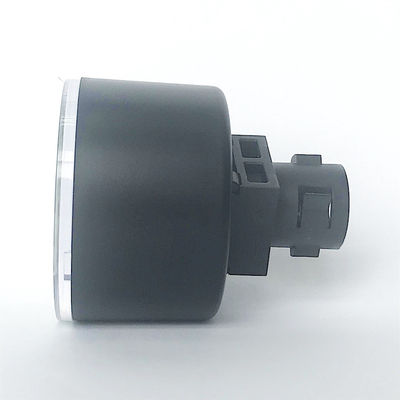

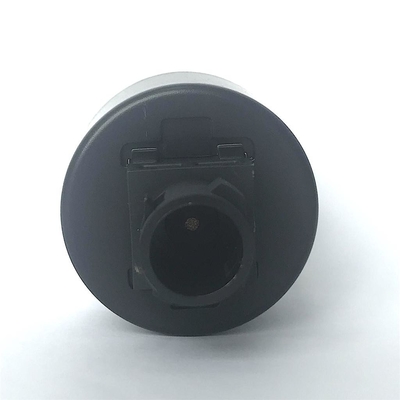

40mm Blue Dial 30 ATM Medical Pressure Gauge Plastic Case Plastic Connector
Description
The Bourdon tube is also sensitive to temperature changes. At low temperatures the tube will be much stiffer and more difficult to straighten. To keep this temperature effect as small as possible the construction material of the tube should be well chosen. Materials having an modulus of elasticity which is insensitive to temperature change are recommended. Fast response time and good sensitivity are among the more desirable features of the Bourdon tube.
Applications
Medical inflation device, inflation device kits, balloon inflation device, inflation syringe
Inflate and deflate dilation balloon, manual balloon catheter pump
Angioplasty inflation devices, anesthesia equipment, medical regulators, respiratory equipment, dental systems, and many more
Special features
Constructed from hygienic materials
|
Design |
EN 837-1 |
|
Nominal size |
40mm |
|
Accuracy |
2.5 |
| Pressure range | 30 ATM |
|
Pressure limitation |
Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value |
| Permissible temperature |
Ambient: -20 ... +60 °C Mediium: +60 °C maximum |
|
Ingress protection |
IP65 |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Plastic |
|
Pressure element |
SS |
| Movement | SS |
| Dial | ABS, colorful, without pointer stop pin, customized |
| Pointer | Aluminum |
| Case | Plastic |
| Window | Plastic |
| Unit |
ATM |
| Thread | G, BSP, PT, BSPT, NPT, other connections |
| Options | Customized logo |
Popular medical pressure gauge
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
